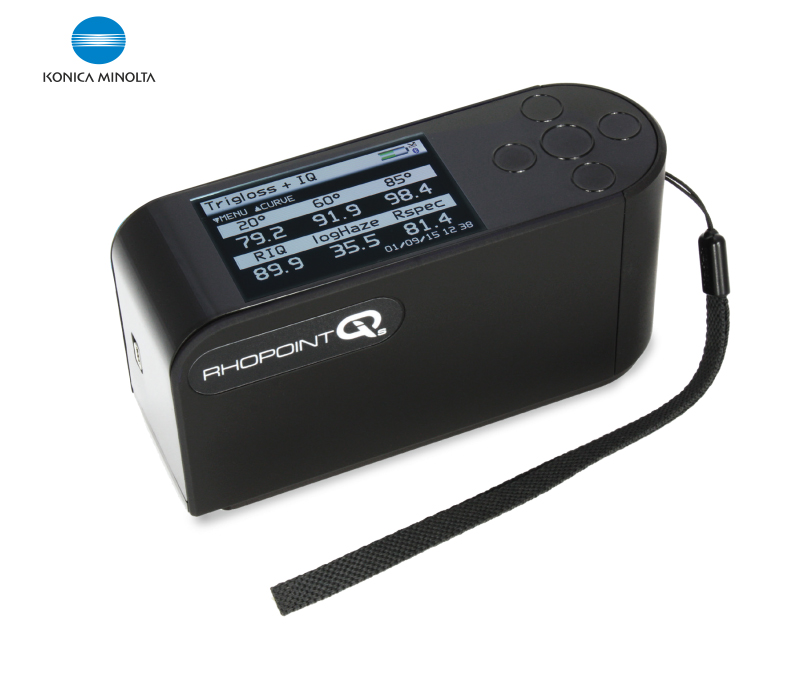

Rhopoint IQ S

Features of Rhopoint IQ S

  • The Rhopoint IQ-S is an innovative goniophotometer that provides key measures of surface appearance, gloss, haze and RIQ for detecting surface defects like orange peel or surface haze.
  • IQ-S is a cost effective solution for detection and measurement of all surface imperfections
  • The IQ-S is a specially designed instrument built specifically to match automotive interior gloss measurement standards
  • Dualgloss 20/60° or Trigloss 20/60/85° versions are close tolerance selected for maximum accuracy and resolution in all gloss applications
  • Software-free data transfer – USB download of results to PC without the need to install software
Rhopoint IQ S

Application of Rhopoint IQ S

Plastic Products, Automobile and Marine Paint Work, Porcelain Products, R & D

Specification of Rhopoint IQ S

1. Measurement Range

20º: 0-2000GU / 60º: 0-1000GU / 85º: 0-199GU

2. Standards

ISO 2813, ASTM D523, ASTM D2457, DIN 67530, JIS 8741 (Conforms 60° & 85° / Verified Performance 20°)

3. Memory

999 measurements with date and time

4. Dimensions & Weight

65 x 140 x 50mm (H x W x D); 790g

5. Statistical Analysis

Max, Min, Mean, S.D.; All Measured Parameters

6. Graphical Analysis

On Board Trend Analysis; Gloss and IQ Values
